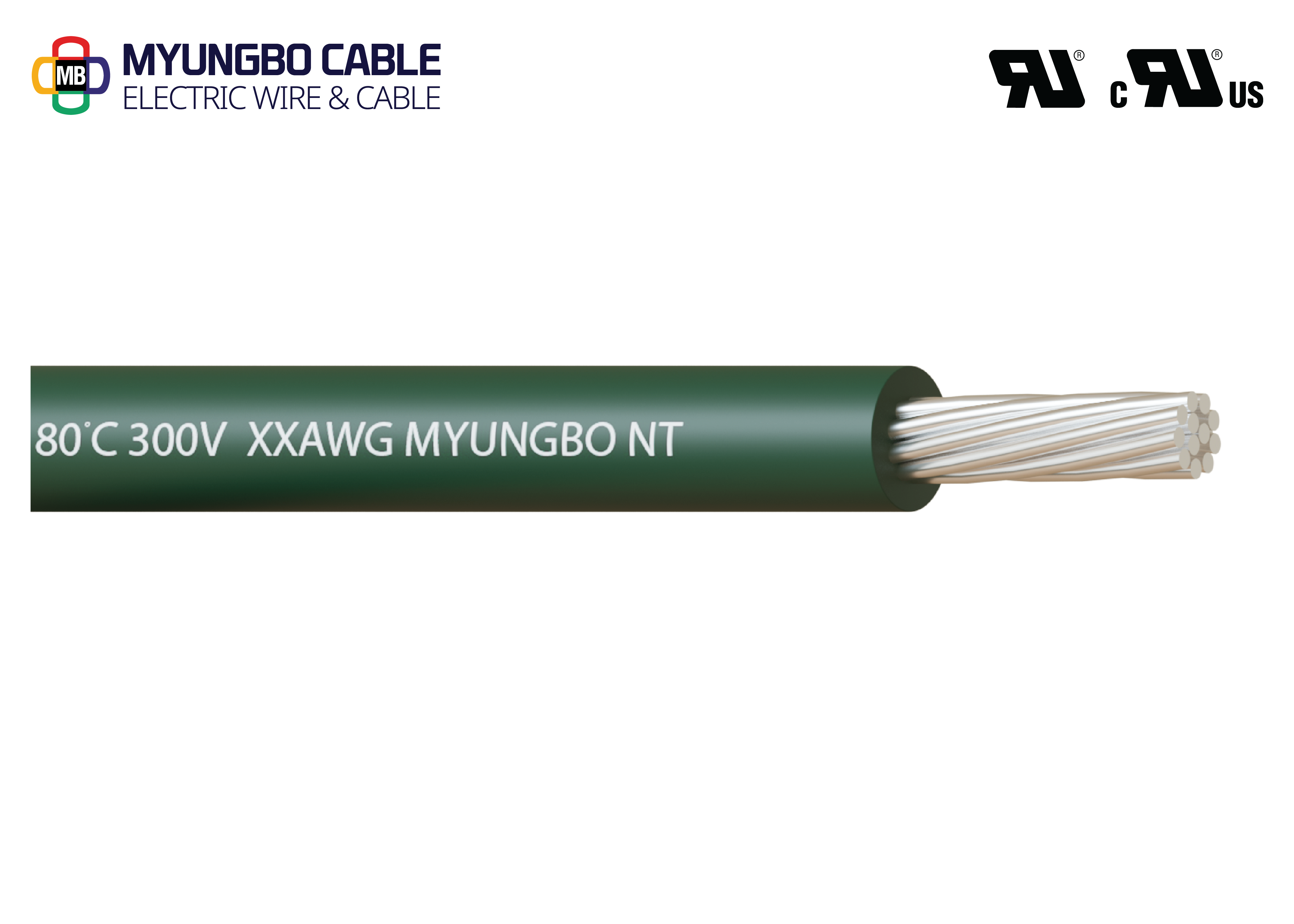

ListAWM 1061 STYLE

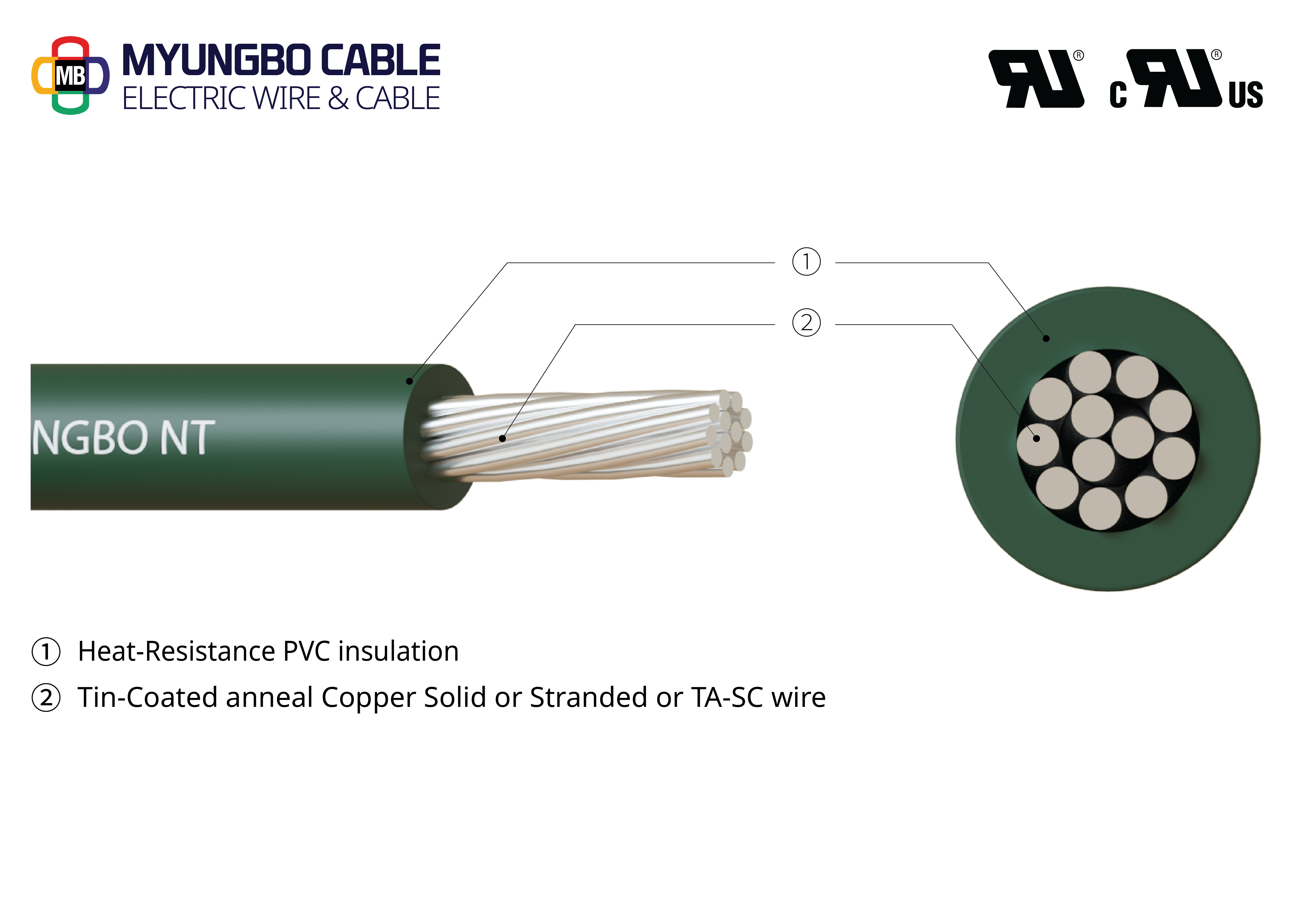

Single conductor using extruded non-integral jacket
- Standards
-
UL Subject 758
UL Standard 1581
- Product Use
-
Internal Wiring in Electric Bookkeeping, Accounting, Time-recording, Machines, or Electronics Euqipment if within a chassis or protected from mechanical injury.
- Characteristic
-
- Rating Voltage: 300V
- Flammability: VW-1 / FT1 PASS
- Product Range: 30AWG - 14AWG
- Package: Rolls or Drums

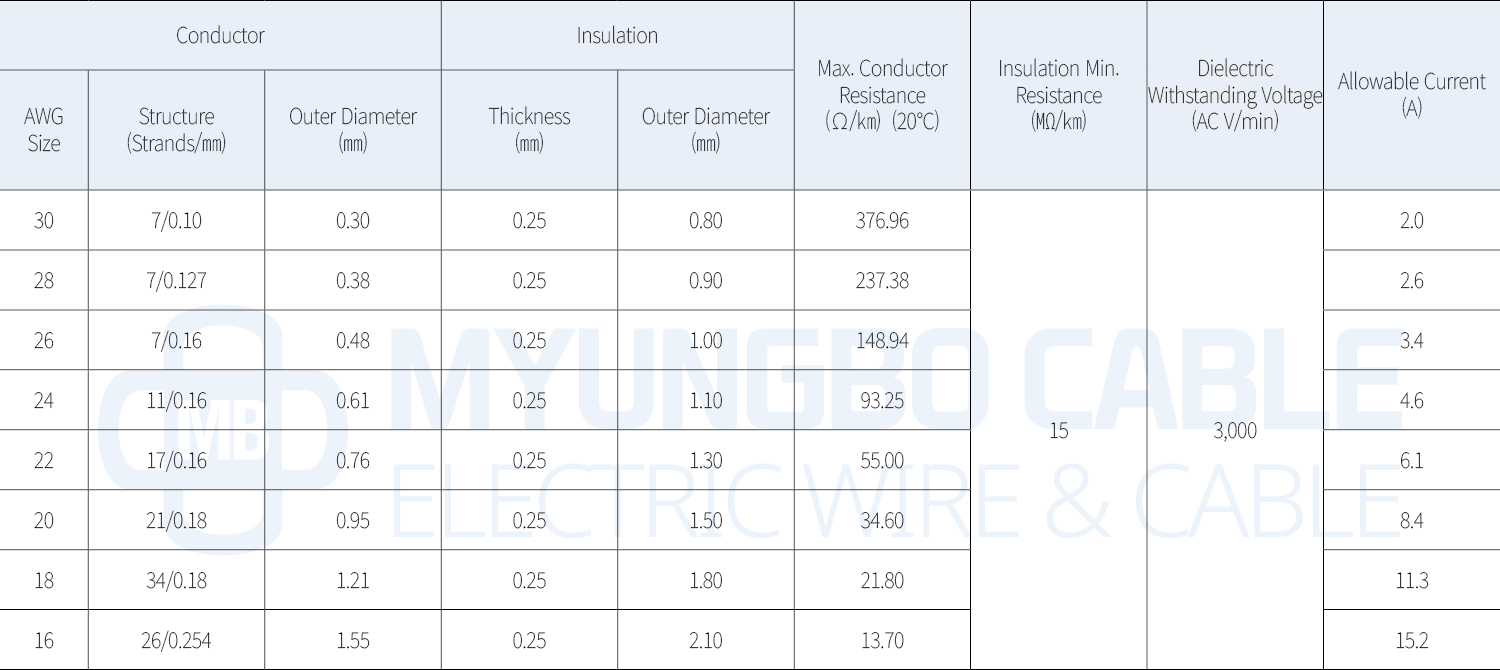

Specifications
- AWG
- 30-14
- SQ(㎟)
- 0.05-2.08
- Structure
- Single
- Shield
- Voltage(V)
- 300V
- Rated Temperature(℃)
- 80℃
- Certification
-
- Material
- Product Use
- Characteristic
Description
